Spring DB : MyBatis
- Spring/Spring DB
- 2022. 7. 8.
이 글은 인프런 김영한님의 강의를 복습하며 작성한 글입니다.
MyBatis의 장점

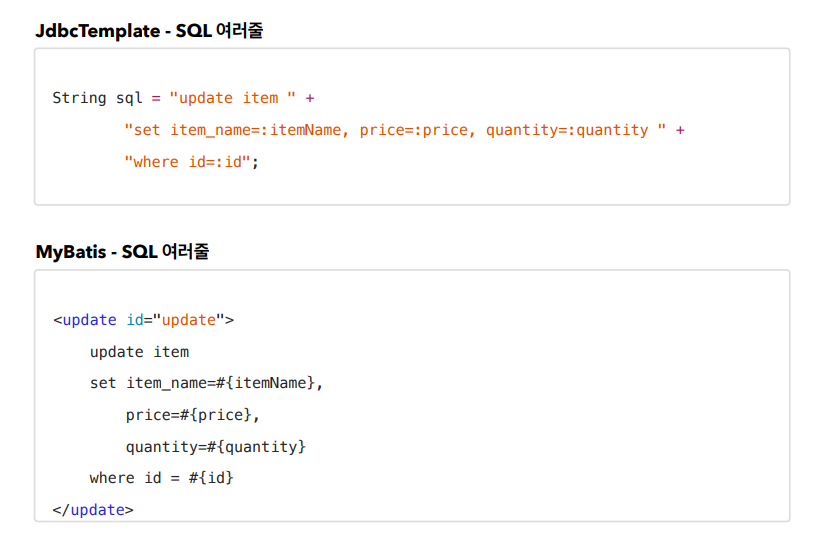

- SQL을 XML에 편리하게 작성할 수 있다. (라인이 길어져도 문자 더하기에 대한 불편함이 없다. 그림 추가)
- 동적 쿼리를 매우 편리하게 작성할 수 있다.
MyBatis의 단점
- MyBatis는 약간의 설정이 필요하다.
프로젝트에서 동적 쿼리와 복잡한 쿼리가 많다면 MyBatis를 사용하는 것이 좋다. 단순한 쿼리가 많은 경우 JdbcTemplate을 선택해서 사용하는 것이 좋다. 둘을 함께 사용해도 좋다.
MyBatis의 설정
//MyBatis 추가
implementation 'org.mybatis.spring.boot:mybatis-spring-boot-starter:2.2.0'
MyBatis를 사용하기 위해서는 MyBatis를 설정해야한다. 설정을 위해서 위의 코드를 build.gradle에 추가해서 의존성 주입을 한다.
`` application.properties
# MyBatis
mybatis.type-aliases-package=hello.itemservice.domain
mybatis.configuration.map-underscore-to-camel-case=true
logging.level.hello.itemservice.repository.mybatis=trace
다음 설정값도 application.properties에 추가해둔다. 그리고 테스트 코드에서도 사용할 수 있기 때문에 테스트 영역의 application.properties에도 해당 설정값을 추가해준다.
- mybatis.type-aliases-package=hello.itemservice.domain
- MyBatis에서는 returnType에 클래스명을 알려줄 때, 이 때 패키지명까지 다 작성해야한다. 이 패키지명을 작성하는 부분을 해결하기 위해서 위 패키지를 사용한다.
- 지정한 패키지와 그 하위 패키지가 자동으로 인식된다.
- 여러 위치를 지정하려면 ',' / ';'로 구분하면 된다.
- mybatis.configuration.map-underscore-to-camel-case
- JdbcTemplate의 BeanPropertyRowMapper에서 처럼 언더바를 카멜로 자동 변경해주는 기능을 활성화 한다.
관례의 불일치
자바 객체에서는 주로 카멜 표기법을 사용하고, RDBMS에서는 언더 스코어를 사용한다. 위 설정을 활성화하면 이 관례의 불일치를 자동으로 맵핑해서 넣어준다.
ItemMapper 생성하기 (인터페이스)
@Mapper
public interface ItemMapper {
// 반드시 인터페이스로 만들어야 함
// 파라미터가 1개인 경우는 넣지 않아도 됨.
void save(Item item);
// 파라미터가 2개인 경우, @Param을 넣어줘야함.
void update(@Param("id") Long id, @Param("updateParam") ItemUpdateDto dto);
// 파라미터가 1개인 경우는 넣지 않아도 됨.
List<Item> findAll(ItemSearchCond itemSearch);
// 파라미터가 1개인 경우는 넣지 않아도 됨.
Optional<Item> findById(Long id);
}
- MyBatis 맵핑 XML을 호출해주는 매퍼 인터페이스다.
- 인터페이스에는 @Mapper를 붙어주어야 함. 그래야 MaBatis에서 인식해줌.
- 인터페이스의 메서드를 호출하면, 'XML'의 해당 SQL을 실행하고 결과를 돌려줌.
- SQL을 실행할 'XML'을 구현해야함.
Mapper와 같은 위치에 실행할 SQL이 있는 XML 맵핑 파일을 만들어 줘야한다. 자바 코드가 아니기 때문에 src/main/resources 하위에 만들되, 패키지 위치를 동일하게 맞춰줘야한다.

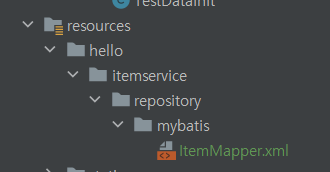

위처럼 패키지 상에서 동일한 위치에 ItemMapper.xml을 동일한 이름으로 만들어 줘야한다.
IteMapper XML 만들기 (인터페이스용)
Insert-Save 쿼리
<!-- id는 메서드 명을 입력해줘야 함. -->
<!-- Values에는 Item 객체에 있는 필드 명을 입력해주면 됨. -->
<!-- 키를 생성하고, 키 값은 "id"라고 저장해 줌.-->
<insert id="save" useGeneratedKeys="true" keyProperty="id">
insert into item (item_name, price, quantity)
values (#{itemName}, #{price}, #{quantity})
</insert>
- Insert SQL은 <insert>를 이용하면 됨
- 'id'에는 Mapper 인터페이스에 설정한 메서드 이름을 지정하면 됨. 여기서는 메서드 이름이 save() 이므로 save로 지정함.
- 파라미터는 #{}로 사용하면 됨.
- #{} 문법을 사용하면 PreparedStatement를 사용함. JDBC의 '?'를 치환하는 것으로 이해하면 됨.
- userGeneratedKeys는 DB 키를 생성해주는 Identity 전략일 때 사용함. KeyProperty는 생성되는 키의 속성 이름을 지정한다. Insert가 끝나면 Item 객체의 id 속성에 생성된 값이 저장됨.
Updatet-update 쿼리
<update id="update">
update item
set item_name=#{updateParam.itemName},
price=#{updateParam.price},
quantity=#{updateParam.quantity}
where id=#{id}
</update>
- Update SQL은 <Update>를 사용하면 됨.
- 파라미터가 Long id, ItemUpdateDto updateParam으로 2개가 존재한다. 파라미터가 2개 이상일 때는 @Param을 지정해서 파라미터를 구분해야 함.
Select - findById
<select id="findById" resultType="item">
select id, item_name, price, quantity
from item
where id=#{id}
</select>
- Select SQL은 <select>를 사용하면 됨.
- resultType을 명시해야 한다. 여기서 결과를 "Item" 객체에 맵핑한다.
- application.properties에서 aliases-pacakage 설정값 때문에 모든 패키지 명을 적지 않아도 됨.
- JdbcTemplate의 BeanPropertyMapper처럼 SELECT SQL의 결과를 편리하게 객체로 바로 변환해줌.
- application.properties의 설정 때문에 언더스코어를 카멜 표기법으로 자동 처리해줌.
- 자바 코드에서 반환 객체가 하나이면 Item, Optional<Item>으로 사용하면 됨. 하나 이상이면 컬렉션을 사용하면 됨. 주로 List를 사용함.
select - findAll
<select id="findAll" resultType="item">
select id, item_name, price, quantity
from item
<where>
<if test="itemName != null and itemname != ''">
and item_name like concat('%',#{itemName}, '%')
</if>
<if test="maxPrice != null">
and price <= #{maxPrice}
</if>
</where>
</select>
- MyBatis는 <where>, <if> 태그를 이용해 동적 쿼리 문법을 평리하게 지원함.
- <if>는 해당 조건이 만족되면 구문을 추가함.
- <where>은 적절하게 where 문장을 만들어줌.
- <if>가 모두 실패하면 SQL "where"를 만들지 않음.
- <if>가 하나라도 성공하면 처음 나타나는 "and"를 "where"로 변환해줌.
XML 특수문자 주의 사항
and price <= #{maxPrice}
위 쿼리에서 가격 비교를 위해 <=를 '<='로 표현했다. 이유는 XML에서는 데이터 영역에 <,> 문자를 사용할 수 없기 때문이다. 따라서 XML에서 대소 비교는 아래 문자를 이용해야 한다.
```
< : <
> : >
& : &
```
MyBatisItemRepository 만들어서 테스트
설정이 완료되었으면, MyBatisItemRepository를 만든다.
@Repository
@RequiredArgsConstructor
public class MyBatisItemRepository implements ItemRepository{
private final ItemMapper itemMapper;
@Override
public Item save(Item item) {
itemMapper.save(item);
return item;
}
@Override
public void update(Long itemId, ItemUpdateDto updateParam) {
itemMapper.update(itemId, updateParam);
}
@Override
public Optional<Item> findById(Long id) {
return itemMapper.findById(id);
}
@Override
public List<Item> findAll(ItemSearchCond cond) {
return itemMapper.findAll(cond);
}
}
만든 후에, 설정 클래스에서 MyBatis를 사용하도록 변경한다.
@Import(MyBatisConfig.class)
@SpringBootApplication(scanBasePackages = "hello.itemservice.web")
@Slf4j
public class ItemServiceApplication {
...
}
Repository를 생성하고, 설정 클래스를 변경한 다음 ItemRepositoryTest를 해보면 정상적으로 테스트가 수행되는 것을 확인할 수 있다.

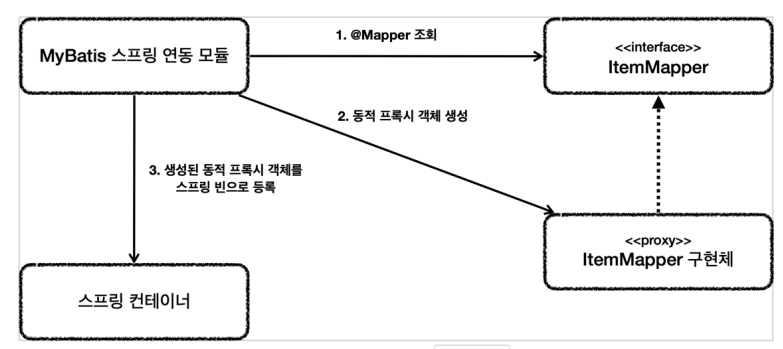

MyBatis의 구현체
앞서 개발자는 ItemMapper라는 인터페이스와 XML 파일만 만들었다. 실제 인터페이스의 구현체를 만들지 않았는데, 어떻게 의존성 주입이 되고 동작할 수 있었던 것일까?
이 부분은 MyBatis 스프링 연동 모듈에서 자동으로 위와 같이 처리해 줌.
- 어플리케이션 로딩 시점에 MyBatis 스프링 연동 모듈은 @Mapper가 붙은 인터페이스를 조사함.
- 인터페이스가 확인되면 동적 프록시 기술을 사용해서 "ItemMapper" 인터페이스의 구현체를 만듦.
- 생성된 구현체를 스프링 빈으로 등록함.
즉, AOP와 같이 동적 프록시 객체를 만들어서 스프링빈으로 등록하고 의존성을 주입해준다는 것이다.
실제 동적 프록시 기술이 적용되었는지 확인
@Override
public Item save(Item item) {
log.info("itemMapper Class = {}", itemMapper.getClass());
itemMapper.save(item);
return item;
}

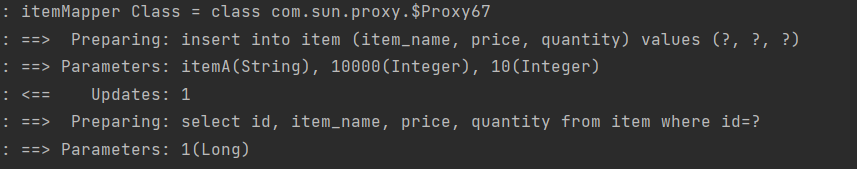

다음 클래스에 Log를 찍어서, ItemMapper의 클래스를 확인해본다.
ItemMapper 클래스를 확인해보니 "com.sun.proxy"다. 즉, JDK 동적 프록시를 이용해서 만들어진 프록시가 주입되었다는 것을 확인할 수 있었다.
매퍼 구현체
- MyBatis 스프링 연동 모듈이 만들어주는 ItemMapper의 구현체 덕분에 인터페이스 만으로 편리하게 XML의 데이터를 찾아서 호출할 수 있음.
- 매퍼 구현체는 예외 반환까지 처리해준다. MyBatis에서 발생한 예외를 스프링 예외 추상화인 DataAccessException에 맞게 변환해서 반환해준다. JdbcTemplate이 제공하는 예외 변환 기능을 여기서도 제공한다고 이해하면 된다.
정리
- 매퍼 구현체 덕분에 MyBatis를 스프링에 편리하게 통합해서 사용할 수 있음.
- 매퍼 구현체를 사용하면 스프링 예외 추상화도 함께 적용됨.
- MyBatis 스프링 연동 모듈(MyBatisAutoConfigutarion 클래스 참고) 이 많은 부분을 자동화 해줌. DB 커넥션, 트랜잭션과 관련된 기능도 마이바티스와 함께 연동하고 동기화 해줌.
- MyBatis 모듈은 DataSource / TransacationManager를 모두 읽어서 연결해줌. 따라서 사용자가 할 일은 없음.
MyBatis 동적 쿼리
- if
- choose (when, otherwise)
- trim (where, set)
- foreach
MyBatis가 제공하는 최고의 기능이다. 동적 쿼리를 위해 제공되는 기능은 다음과 같다.
if
<select id="findActiveBlogWithTitleLike"
resultType="Blog">
SELECT * FROM BLOG
WHERE state = ‘ACTIVE’
<if test="title != null">
AND title like #{title}
</if>
</select>
- 해당 조건에 따라 값을 추가할지 말지 판단한다.
- 내부의 문법을 OGNL을 사용한다. 자세한 내용을 ONGL을 검색해보자.
choose, when, otherwise
<select id="findActiveBlogLike"
resultType="Blog">
SELECT * FROM BLOG WHERE state = ‘ACTIVE’
<choose>
<when test="title != null">
AND title like #{title}
</when>
<when test="author != null and author.name != null">
AND author_name like #{author.name}
</when>
<otherwise>
AND featured = 1
</otherwise>
</choose>
</select>
- 자바의 switch 구문과 유사한 구문도 사용할 수 있음.
trim, where, set
<select id="findActiveBlogLike"
resultType="Blog">
SELECT * FROM BLOG
WHERE
<if test="state != null">
state = #{state}
</if>
<if test="title != null">
AND title like #{title}
</if>
<if test="author != null and author.name != null">
AND author_name like #{author.name}
</if>
</select>
- 이 예제의 문제점은 문장을 모두 만족하지 않을 때 발생한다.
SELECT * FROM BLOG
WHERE
- title만 만족할 때도 문제가 발생한다.
SELECT * FROM BLOG
WHERE
AND title like ‘someTitle’
- 결국 'WHERE' 문을 언제 넣어야 할지 상황에 따라서 동적으로 달라지는 문제가 있다.
- <where>를 사용하면 이런 문제를 해결할 수 있다.
<select id="findActiveBlogLike"
resultType="Blog">
SELECT * FROM BLOG
<where>
<if test="state != null">
state = #{state}
</if>
<if test="title != null">
AND title like #{title}
</if>
<if test="author != null and author.name != null">
AND author_name like #{author.name}
</if>
</where>
</select>
<where>
- 문장이 없으면 where를 추가하지 않음. 문장이 있으면 where를 추가함.
- 만약 and가 먼저 시작된다면 and를 지운다.
foreach
<select id="selectPostIn" resultType="domain.blog.Post">
SELECT *
FROM POST P
<where>
<foreach item="item" index="index" collection="list"
open="ID in (" separator="," close=")" nullable="true">
#{item}
</foreach>
</where>
</select>
- 컬렉션을 반복 처리할 때 사용한다. 'where in (1,2,3,4,5,6)'과 같은 문장을 쉽게 완성할 수 있다.
- 파라미터로 List를 전달하면 된다.
어노테이션으로 SQL 작성
@Select("select id, item_name, price, quantity from item where id=#{id}")
Optional<Item> findById(Long id);
- @Insert, @Update, @Delete, @Select 기능이 제공됨.
- XML 대신에 어노테이션에 SQL을 작성할 수 있음. 그런데 XML에 작성하는 것이 더 메리트 있기 때문에 잘 사용하지는 않는다.
- 동적 SQL이 해결되지 않으므로 간단한 경우에만 사용한다.
- 어노테이션으로 SQL을 작성했다면, XML에 작성된 <select ..> 쿼리는 삭제해야함.
문자열 대체(String Substitution)
- #{} 문법을 ?를 넣고 파라미터를 바인딩하는 PreparedStatment를 사용한다. 이 경우 파라미터에 있는 값이 들어옴.
- 문자 그대로 넣고 싶은 경우 ${}를 이용하면 됨.
Select("select * from user where ${column} = #{value}")
User findByColumn(@Param("column") String column, @Param("value") String
value);
${}를 사용하면 SQL 인젝션 공격을 당할 수 있다. 따라서 가급적 사용하면 안된다. 사용하더라도 매우 주의깊게 사용해야 한다.
재사용 가능한 SQL 조각
<sql id="userColumns"> ${alias}.id,${alias}.username,${alias}.password </sql>
<sql>을 사용하면 SQL 코드를 재사용 할 수 있다.
<select id="selectUsers" resultType="map">
select
<include refid="userColumns"><property name="alias" value="t1"/></include>,
<include refid="userColumns"><property name="alias" value="t2"/></include>
from some_table t1
cross join some_table t2
</select>
<include>를 통해서 <sql> 을 찾아서 사용할 수 있다.
Result Maps
결과를 맵핑할 때 테이블은 'user_id' 이지만 객체는 'id'이다. 이 경우 컬럼명과 객체의 프로퍼티 명이 다르다. 보통 별칭 ('as')를 사용해서 해결할 수 있다.
// 별칭을 이용해서 해결
<select id="selectUsers" resultType="User">
select
user_id as "id",
user_name as "userName",
hashed_password as "hashedPassword"
from some_table
where id = #{id}
</select>
별칭을 사용하지 않고도 문제를 해결할 수 있는데, 다음과 같이 'resutlMap'을 선언해서 사용하면 된다
// Result Map 선언
<resultMap id="userResultMap" type="User">
<id property="id" column="user_id" />
<result property="username" column="user_name"/>
<result property="password" column="hashed_password"/>
</resultMap>
// Result Map 사용
<select id="selectUsers" resultMap="userResultMap">
select user_id, user_name, hashed_password
from some_table
where id = #{id}
</select>
MyBatis 공식 사이트
- https://mybatis.org/mybatis-3/ko/index.html
